HT Cables

Overview

About HT Cables

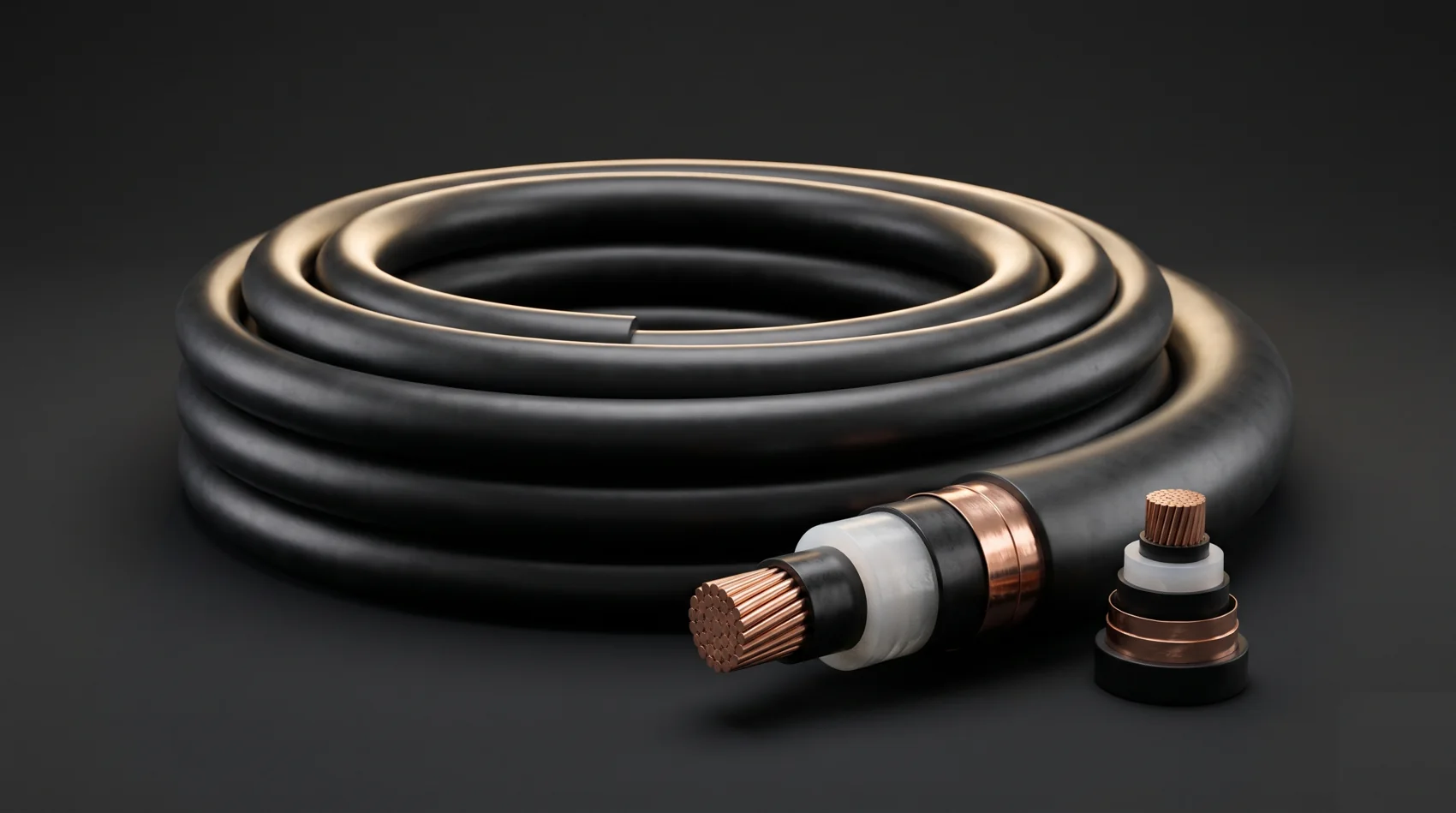

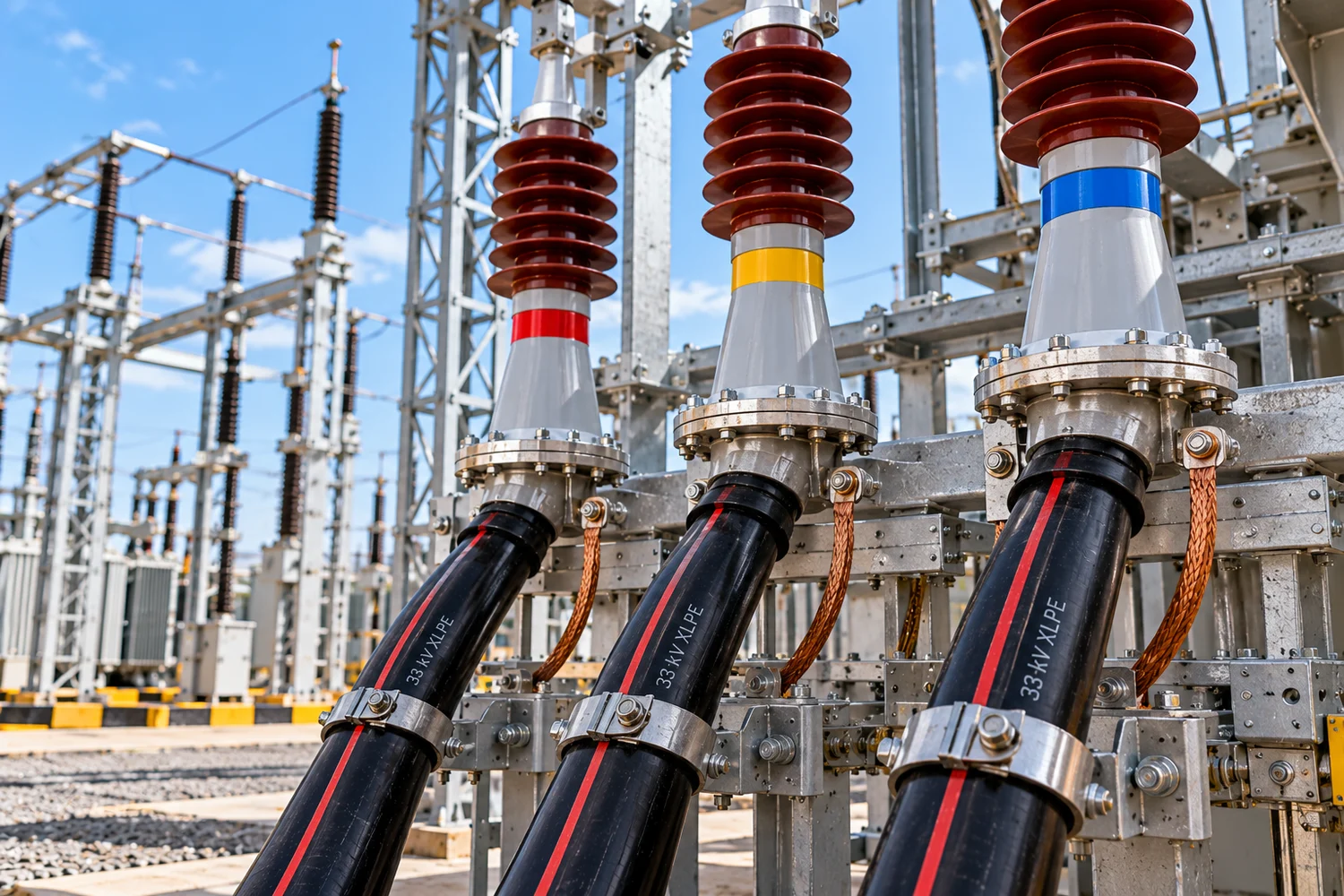

High-tension cables carry power at distribution voltages, typically 11 kV and 33 kV, between transformers, switchgear and substations. At these voltages the insulation system is critical: XLPE insulation with shielding controls the electric field inside the cable, and the terminations and joints at each end are as important as the cable itself.

Prime Volt Systems supplies HT cables with copper and aluminium conductors and XLPE insulation in the 11 kV and 33 kV classes, and carries out HT cable works, terminations and commissioning support through its HT services. The size range is confirmed for each project.

To quote this, please share

• Voltage class (11 kV or 33 kV)
• Conductor material (copper or aluminium)
• Cable size, or the load and fault level to be carried

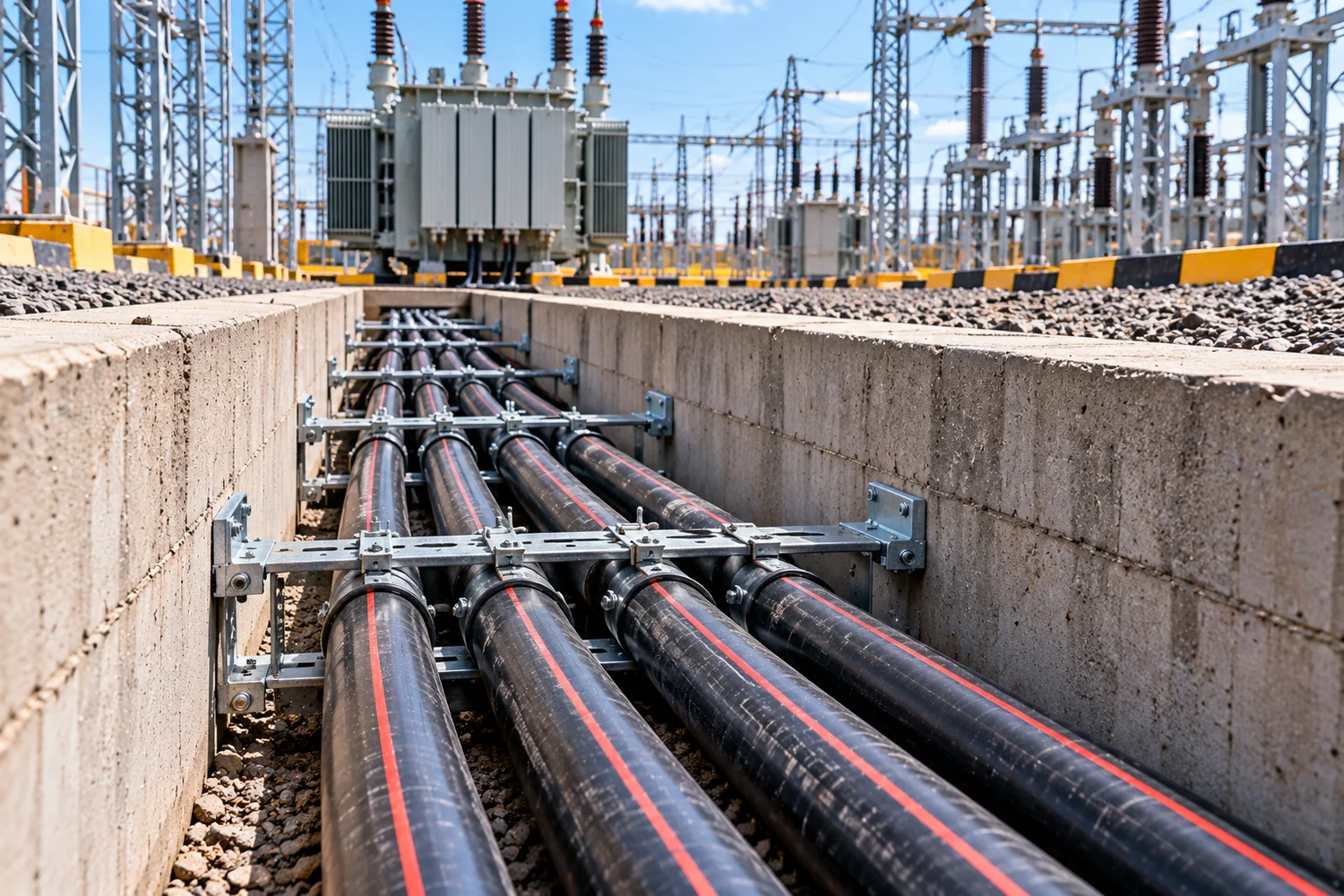

• Route length and laying method (trench, tray or duct)
• Armoured or unarmoured, and the earthing screen arrangement
• Termination and jointing requirements
• Whether HT works and commissioning are also required
